Overige NCB FD 1800 HD DT

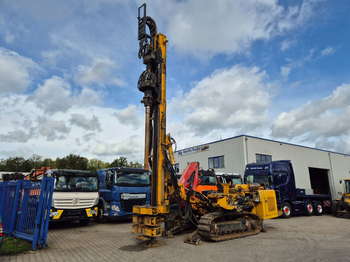

NCB FD 1800 HD DT
18447 working hours
Year 2009
With Fassi F80A.23 + remote control from year 2003

UNDERCARRIAGE
Overall Length 3210 mm
Track Width 2350 mm
Shoes Width 500 mm
ENGINE
DEUTZ Engine
Type TCD 2013 L6 2V
Maximum Power Output 190 kW
Rated Output 2300 r.p.m.
Fuel Tank Capacity 350 l
HYDRAULIC SYSTEM
Hydraulic Pumps 1st Circuit 80 l/min
2nd Circuit 55 l/min
3rd Circuit 55 l/min
Hydraulic Oil Tank Capacity 481 l
Working Pressure 250 bar
MAST
Mast Length 8000 mm
Pull-Down Cylinder Force (Push/Pull) 13000/20000 kgm
Pull-Down Stroke 4300 mm
Maximum Rods Length 4000 mm
ROTARY HEAD
T3-2000 Maximum Torque 2045 kgm
Speed Range 0 - 113 rpm
Number of Hydraulic Motor 3
Type of Hydraulic Motors CHAR-LYNN
T2-1000 Maximum Torque 1000 kgm
Speed Range 0 - 88 rpm
Number of Hydraulic Motor 2
Type of Hydraulic Motors DANFOSS
WINCH
AUXILIARY WINCH
Maximum pulling force (1st Layer) 15 kN
Rope Diameter 10 mm
CLAMPS
CLOSING CLAMP
Blocking Clamp Diameter 350 mm
Blocking Clamp Force 15300 daN
BREAKOUT CLAMP
Blocking Clamp Diameter 350 mm
Blocking Clamp Force 5500 daN
Break-Out Force 15300 daN
THIRD CLAMP
Blocking Clamp Diameter 350 mm
Blocking Clamp Force 15300 daN
AUXILIARY SERVICE CRANE
Fassi F.80
WATER PUMP (UDOR 200)
Maximum Water Delivery 200 l/min
Maximum Water Pressure 80 bar
WEIGHT
Total Weight- approx 20 ton
